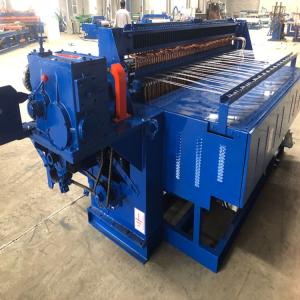

Automatic Galvanized Wire Fence Mesh Welding Machine
1. Product description
Automatic galvanized wire fence mesh welding machine is used for making wire mesh. The mesh welding system for fine welded mesh providing highest product quality and performance. The cross wires are fed - according to specification - either with single wire or double wire feed with a special transport and oscillating gripper of the respective electrode level. Mesh is pulled out with a rubberised 3-roller system which is positioned behind the welding portal. This enables continuous divisions.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic galvanized wire fence mesh welding machine can be widely used in algriculture. It is suitable for interior decoration, arts and crafts, anticorrosion, poultry breeding and other industries.
4. Advantages
a. Water cooling transformer is used for hot area.
b. Line wire vertical straightening system to provide high quality.
c. The mesh roll length can be set by counter switch on the control panel.
d. The middle cutter and sider cutter can be adjusted randomly to make two mesh rolls at same time.
e. Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
