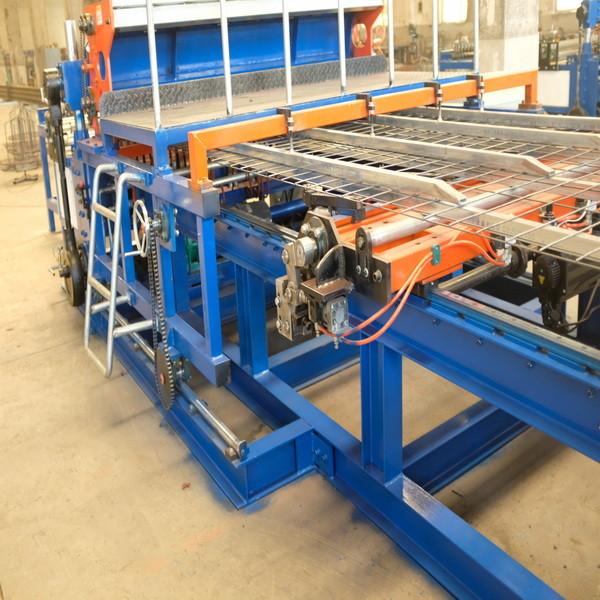

Galvanized Spooling Diamond Mesh Wire Making Machine 70times/Min

Name: Galvanized Spooling Diamond Mesh Wire Making Machine 70timesMin
Brand: Huayang
Price: 1 USD

Brand Name : Huayang

Model Number : R-DHW

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 sets/month

Delivery Time : 30 days

Packaging Details : 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.

Product name : Galvanized Wire Orange Diamond Mesh Wire Making Machine

Applicable Industry : Manufacturing Plant

Color of Machine : as Your Request

Wire Diameter : 3.0-8.0mm

Mesh Size : 100-300mm

Panel Mesh Dimension : 4000x2500mm

Welding Speed : 30-70times/min

Nominal Voltage : 380v or Customized

Feeding type : automatic

Contact Now

Galvanized Orange Diamond Mesh Wire Making Machine

1. Product description

Galvanized orange diamond mesh wire making machine is used for making wire mesh. Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine etc.

2. Technical parameter

Model	HY-DHW-1500	HY-DHW-2000	HY-DHW-2500	HY-DHW-2800	HY-DHW-3300
Weld width(mm)	1500	2000	2500	2800	3300
Meshi trip(mm)	Single trip 3000 and no limit on return
Std trans.spacing	>=25mm-stepless adjustable
Std long.spacing	>=50mm, and progressive increase by 50			>=100mm, and increase by 100
Std weld spots	31	41	51	27	32
Wire diameter(mm)	3.0-6.0	3.0-6.0	3.0-6.0	5.0-12.0	5.0-12.0
Weld speed(times/min	50-70	40-60	40-60	40-60	40-60
Trans material	Straight bar/rod			Straight bar
Long material	Straight bar/rod
Control mode	PLC programming servo motor stepper
Mesh diagonal error	<=2
Mesh overall error	<=2
Air pressure	>=0.7
Weld material	Cold drawn wire, galvanized wire, cold rolled ribbed steel

3. Application area

The galvanized wire orange diamond mesh wire making machine can be used in highways, railways,brideges,around mountains(fence,fence net),construction(building roof mesh).

4. Advantages

a. This line adopt special welding process ,Efficient water cooling system and precision welding control system and high quality copper alloy electrodes with unique appearance.

b. The line wire and the weft wire of wire mesh welding machine are pre-straight and pre-cut.

c. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.

d. The welding wire diameter is able to be made to orders. The range of our mesh welding machine is from 0.3mm to 12mm. Material can be stainless steel wire, galvanized wire, plain steel bar, cold rolled rebar, hot rolled rebar.

e. The machine line automatic degree can be according to request. For the economical type, line wire and cross wire are pre straightened and cut to length. We are capable to produce fully automatic machine.
